30232

Category:

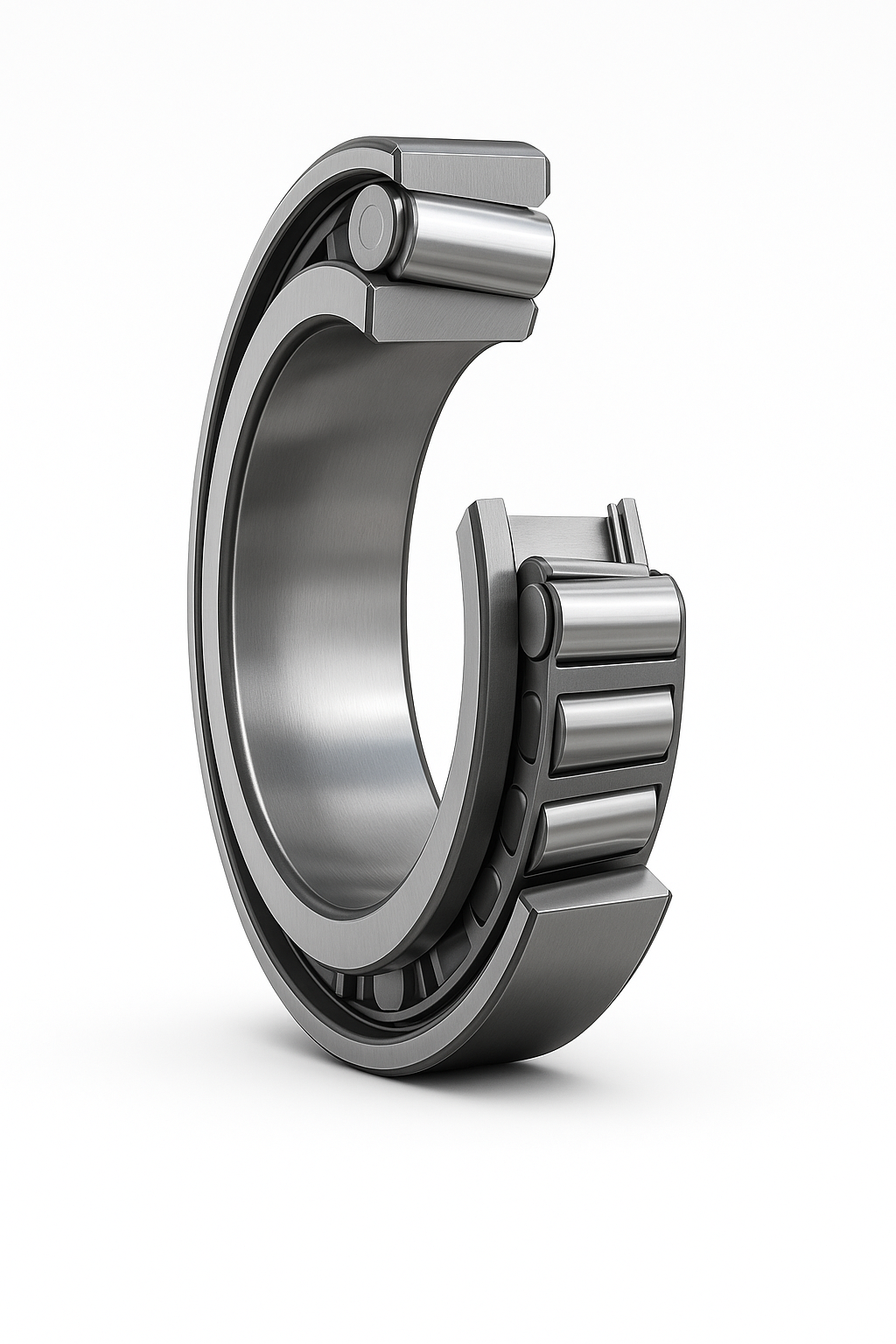

Single Row Tapered Roller Bearing

Engineered for performance and precision, single row tapered roller bearings are ideal for handling combined radial and axial loads with minimal friction. Their design allows the inner ring—along with the rollers and cage—to be installed separately from the outer ring, making assembly, disassembly, and maintenance remarkably straightforward.

Thanks to their separable and interchangeable components, these bearings offer exceptional versatility. When mounted in pairs with preload, they provide a rigid and stable bearing arrangement, perfect for demanding applications.

Key Advantages:

  • High capacity for both radial and axial loads
  • Supports axial forces in a single direction
  • Designed for low friction and extended service life
  • Separable, interchangeable components for easy installation and maintenance


Dimensions

Bore diameter160 mm
Outside diameter290 mm
Width, total52 mm
Width, inner ring48 mm
Width, outer ring40 mm
Contact angle16.172 °

Performance

Basic dynamic load rating566 kN
Basic static load rating735 kN
Reference speed1 600 r/min
Limiting speed2 200 r/min

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
CoatingWithout
SealingWithout
Relubrication featureWithout
Unit systemMetric

Logistics

Product net weight13.2 kg
eClass code
UNSPSC code

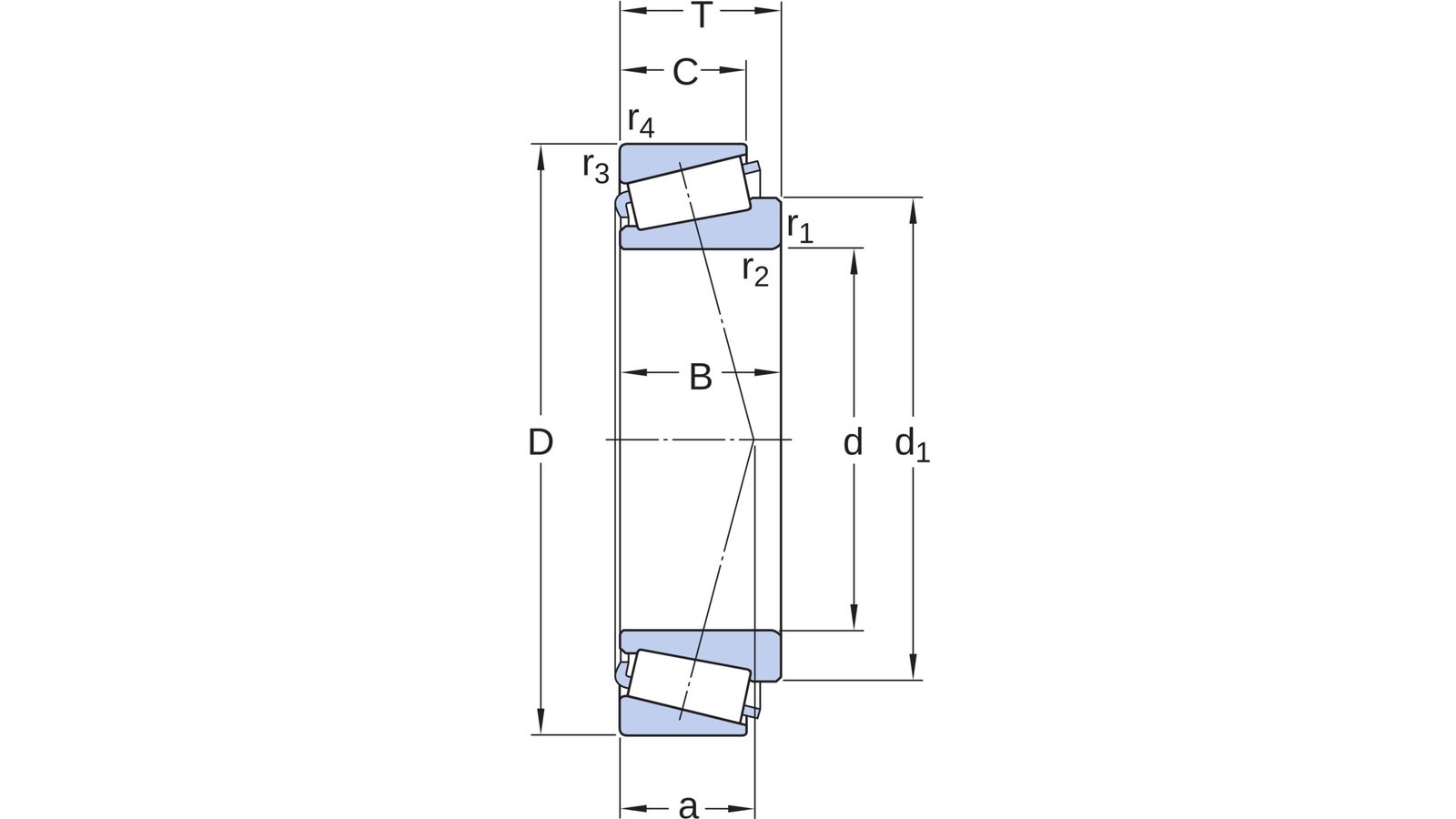

Dimensions

d 160 mmBore diameter
D290 mmOutside diameter
T52 mmTotal width
d1≈215.57 mmShoulder diameter of inner ring
B48 mmWidth of inner ring
C40 mmWidth of outer ring
r1,2 min.4 mmChamfer dimension of inner ring
r3,4 min.3 mmChamfer dimension of outer ring
a 53.88 mmDistance side face to pressure point

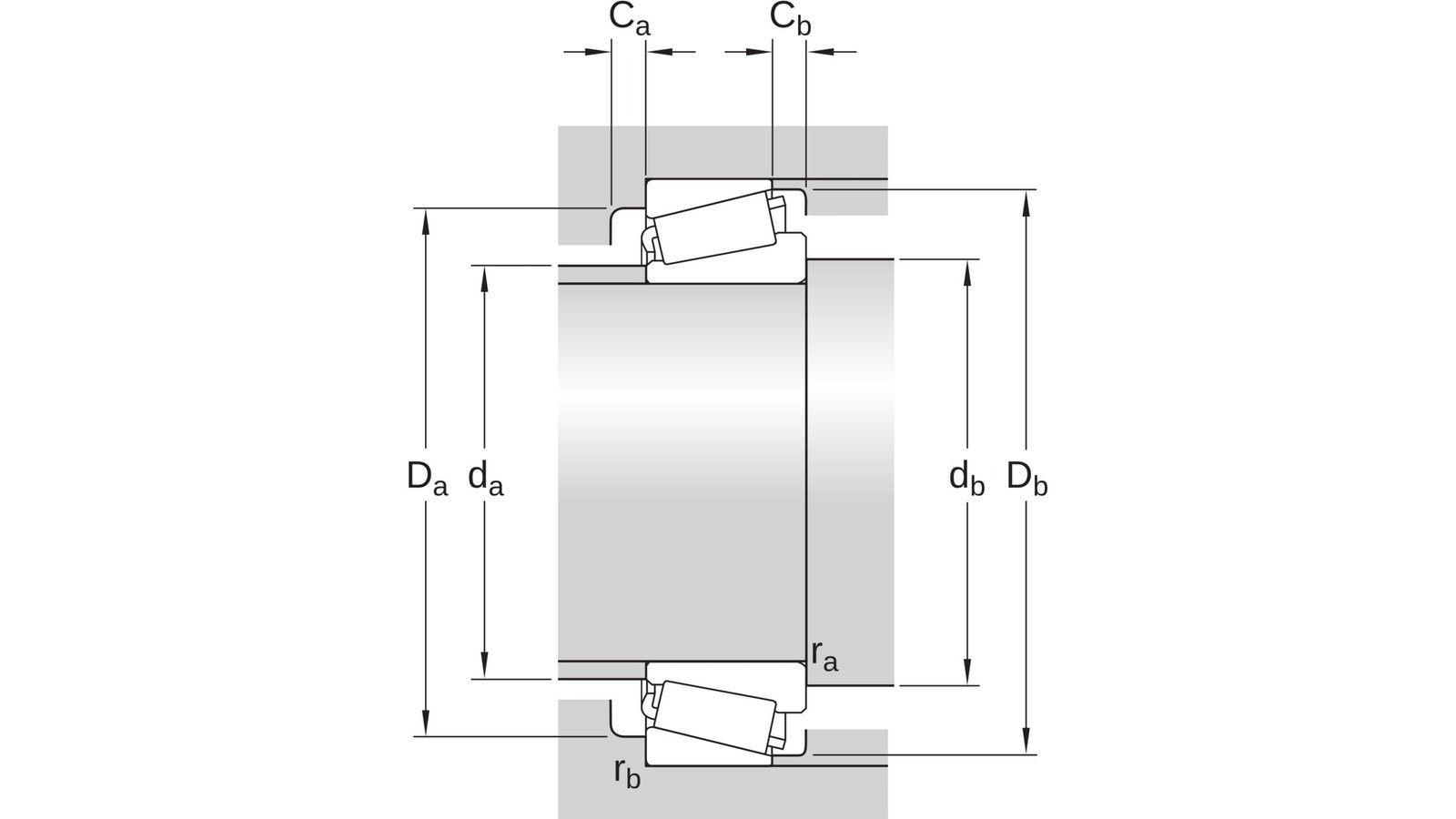

Abutment Dimensions

damax.190 mmDiameter of shaft abutment
dbmin.177 mmDiameter of shaft abutment
Damin.252 mmDiameter of housing abutment
Da max.276 mmDiameter of housing abutment
Dbmin.269 mmDiameter of housing abutment
Camin.7 mmMinimum width of space required in housing on large side face
Cbmin.12 mmMinimum width of space required in housing on small side face
ramax.4 mmRadius of shaft fillet
rbmax.3 mmRadius of housing fillet
